Product Overview

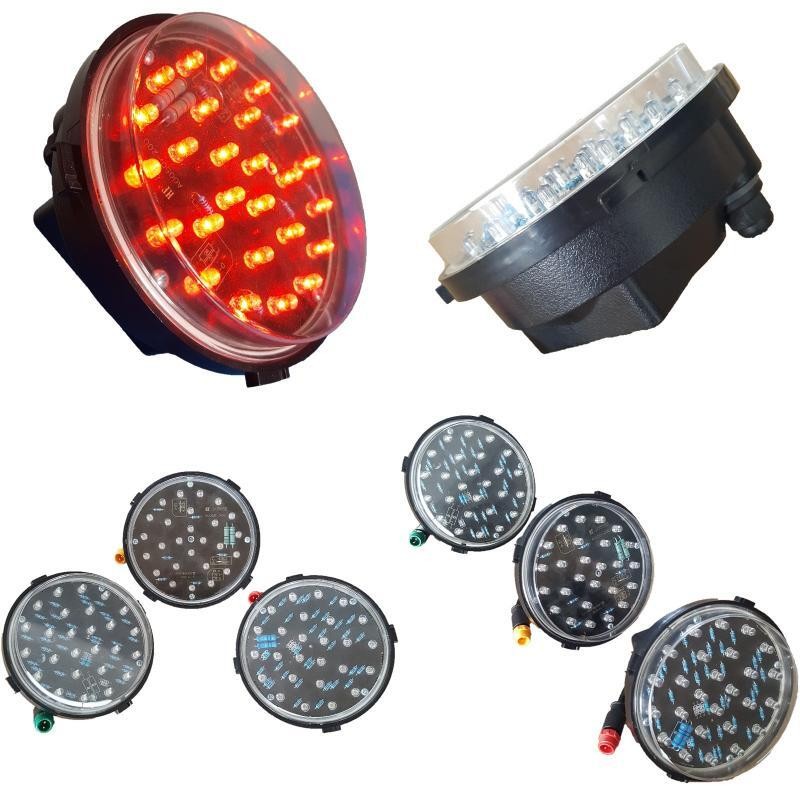

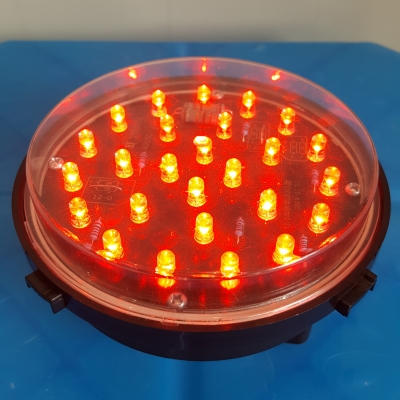

100MM Traffic Light Red LED Module is the inner part of our 100MM traffic light, which also includes 100MM housing body as its outer part, these 2 parts together make one whole piece of our 100MM traffic light
100MM Traffic Light Red LED Module includes its all electrical parts, an inner housing body for holding all these electrical parts, an inner sealing ring for first-level water and dust protection, a transparent and flat lens, and an outer sealing ring for second-level waterproof and dustproof.
100MM Traffic Light Red LED Module has 5MM diameter LEDs, Printed Circuit Board named as PCB, suitable resistors for adjusting the brightness, possible power transformer if it is direct current input supply.
Key Features
- Product Size: 120*120*70MM/100MM Diameter
- Input Voltage: 12-24VDC Or 110-220VAC
- Power Factor: ≥0.85 @ 25℃
- Power Consumption: ＜3W Per Lamp
Recommended Applications
- Intersection signal systems
- Road safety upgrades and municipal projects
- Distributor and contractor procurement
Detailed Description
1-Aspect Mini Size Housing Body: 120*70MM
Transparent Rotary Cover: Easy Installation And Possible Repair
Customizable Traffic Light Optics：Customize Your Voltage From 12-24VDC And 110-220VAC
| |
|---|---|

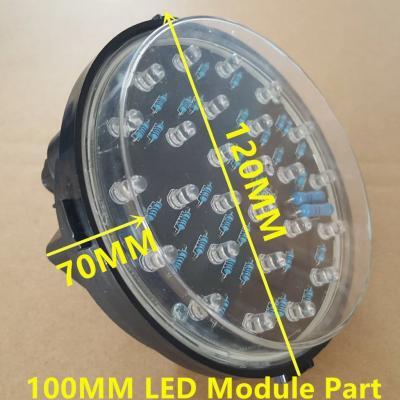

| 100MM Traffic Light Red LED Module | |
| Length: 120MM | Mounting And Fixing Ears: 4 |
| Width/Thickness: 120MM | Inner Sealing Ring: Yes |
| Height: 70MM | Detachable visior: No |
Product FAQ
Can this model be customized for local project standards?
Yes. GAOQIAO supports OEM and ODM production for voltage, signal configuration, mounting and project-specific requirements.
Can this product be supplied together with matching accessories?
Yes. We can match this item with controllers, poles, solar power systems and related accessories for complete project supply.
Do you support export orders and bulk quotations?
Yes. We regularly support distributors, contractors and engineering buyers with bulk supply and export-ready quotations.
