200MM(8 Inch) 2-Aspect Red Green Arrow Traffic Semaphore

Traffic Safety Equipment

200MM(8 Inch) 2-Aspect Red Green Arrow Traffic Semaphore

200MM(8 Inch) 2-Aspect Red Green Arrow Traffic Semaphore - Traffic Light by GAOQIAO. Model 8 Inch 2-Aspect Red Green Arrow Traffic Semaphore. Key specs: Product Size: 270*110*650(550)MM/184+200MM Diameter; Input Voltage: 12-24VDC Or 110-220VAC. Designed for road intersection traffic.

Request a Quote Back to Catalog
Brand: GAOQIAO Model: 8 Inch 2-Aspect Red Green Arrow Traffic Semaphore OEM / ODM Factory Direct
Product Size
270*110*650(550)MM/184+200MM Diameter
Lenses：
Transparent&Flat/Cobweb&Curved
Wavelength
630±5nm(R), 590±5nm(Y), 505±5nm(G)
Input Voltage
12-24VDC Or 110-220VAC
Light Source
5MM Diameter LED
Communicate
Self-Learn/RS485 Real-Time
Power Factor
≥0.85 @ 25℃
Power Consumption
＜3W Per Lamp
Every unit ships with wiring diagram, mounting hardware and individual burn-in report. OEM branding and custom voltages available on standard lead times.

Product Overview

200MM(8 Inch) 2-Aspect Red Green Arrow Traffic Semaphore - Traffic Light by GAOQIAO. Model 8 Inch 2-Aspect Red Green Arrow Traffic Semaphore. Key specs: Product Size: 270*110*650(550)MM/184+200MM Diameter; Input Voltage: 12-24VDC Or 110-220VAC. Designed for road intersection traffic.

Key Features

  • Product Size: 270*110*650(550)MM/184+200MM Diameter
  • Input Voltage: 12-24VDC Or 110-220VAC
  • Power Factor: ≥0.85 @ 25℃
  • Power Consumption: ＜3W Per Lamp

Recommended Applications

  • Intersection signal systems
  • Road safety upgrades and municipal projects
  • Distributor and contractor procurement

Detailed Description

3-In-1 RYG Triple Color Design: Three colors Together For Min Cost

Transparent Lens Design: High Resolution And High Penetration For High Light Effect

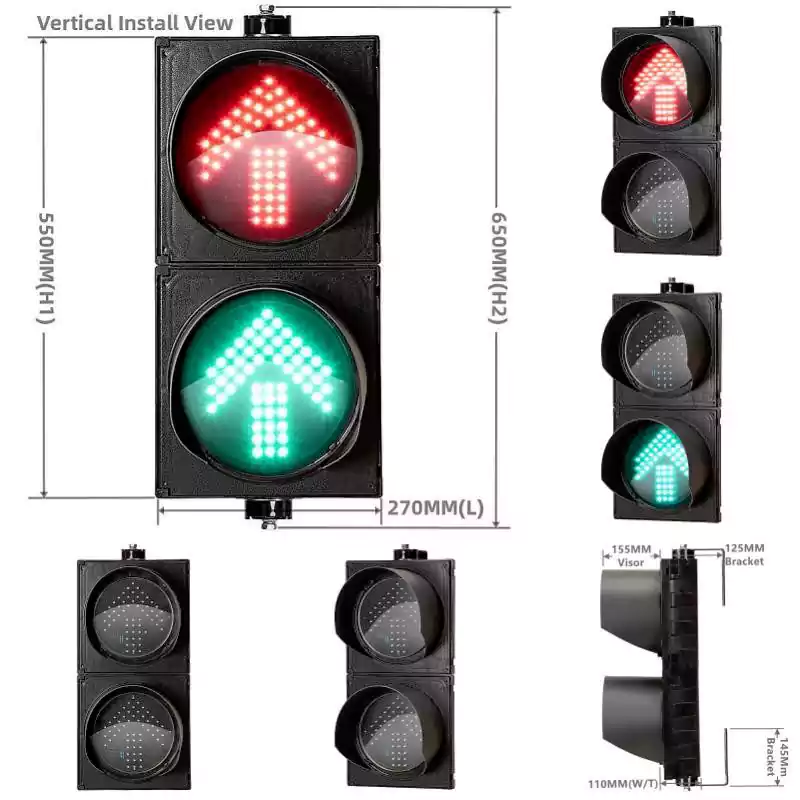

2-Section Detachable Traffic Signal Light Body: 270*110*650(550)MM

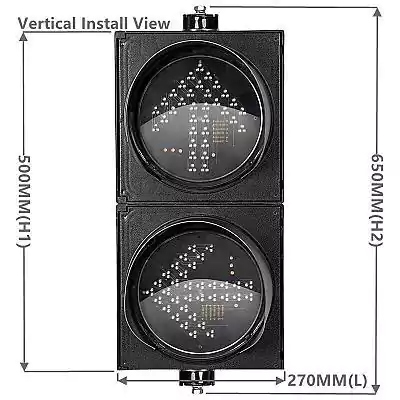

200MM 2-Aspect RG Arrow Traffic Semaphore 200MM 2-Aspect RG Arrow Traffic Semaphore
200MM(8 Inch) 2-Aspect Red Green Arrow LED Traffic Light, 2 aspect/section as 200MM*2/202
Length: 270MMSteel bracket: 125MM*145MM
Width/Thickness: 110MMTop bracket and bottom bracket as one set
Height with bracket: 650MMDetachable visior: 155MM length

200MM(8 Inch) 2-Aspect Red Green Arrow LED Traffic Light is one kind of our 200MM LED Traffic Lightseries, which also includes 200MM Ball LED Traffic Light, both are used to remind any driver and pedestrian to go or stop on road.

200MM(8 Inch) 2-Aspect Red Green Arrow LED Traffic Light has 2 aspects in total, and each aspect has 3-in-1 design, which means one arrow LED Traffic Light has red arrow,yellow arrow and green arrow in 1 aspect.

200MM(8 Inch) 2-Aspect Red Green Arrow LED Traffic Light has 3 statuses, including red LED Traffic Light time for stop, yellow LED Traffic Light for caution, and green LED Traffic Light for go.

200MM(8 Inch) 2-Aspect Red Green Arrow LED Traffic Light has multiple functions, such as parking light on any parking lot, washing light on car washing station, access light on any entrance and exist, pedestrian traffic llight on sidewalk road, as well as racing light on racking track.

Product FAQ

Can this model be customized for local project standards?

Yes. GAOQIAO supports OEM and ODM production for voltage, signal configuration, mounting and project-specific requirements.

Can this product be supplied together with matching accessories?

Yes. We can match this item with controllers, poles, solar power systems and related accessories for complete project supply.

Do you support export orders and bulk quotations?

Yes. We regularly support distributors, contractors and engineering buyers with bulk supply and export-ready quotations.
